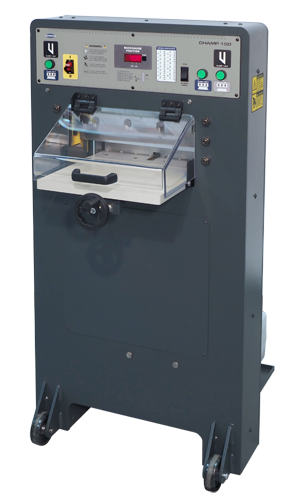

Challenge Champ 150 Hydraulic Paper Cutter
Challenge Champ 150
Key Benefits/Features:
Hydraulic powered clamping AND cutting
Strongest 15" paper cutter in the market
Great for cutting high volumes or thick stocks in small formats
Narrow footprint allows machine to roll through 29" doorway
"Clamp only" cycle or "clamp and cut" cycle
Digital display of cut length setting, in inches or metric
Heavy duty welded steel frame
Built in "lock out" power switch
Plugs into standard 120 Volt, 20 Amp outlet
The CHAMP 150 meets the toughest safety standards in the industry today. Front cover safety shield, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to our UL and CE certifications.
Proudly manufactured in the USA, The CHAMP 150 continues our legacy of providing… assurance you made the right decision.
SPECIFICATIONS
Maximum Cutting Width 15" / 38.1cm
Minimum Cut 1-3/4" / 44mm
Maximum Cut Depth 12" / 30.5cm
Clamp Opening 2" / 5.1cm
Table space in front of knife 12" / 30.5cm
Clamping Method Hydraulic and Manual
Backgauge Control Manual
Dimensions
Total Height 54" 137cm
Total Width 28" / 71cm
Total Depth 34" / 86cm
Net Weight (approximate) 600 lbs / 270 kg
Shipping Weight (approximate) 750 lbs / 340 kg
Electrical
Motor Type Standard Motor
Power 120 Volt, 60 Hz, One Phase, 12 Amps (Recommended service size: 20 Amps)
