Challenge CHAMP 185 Paper Cutters

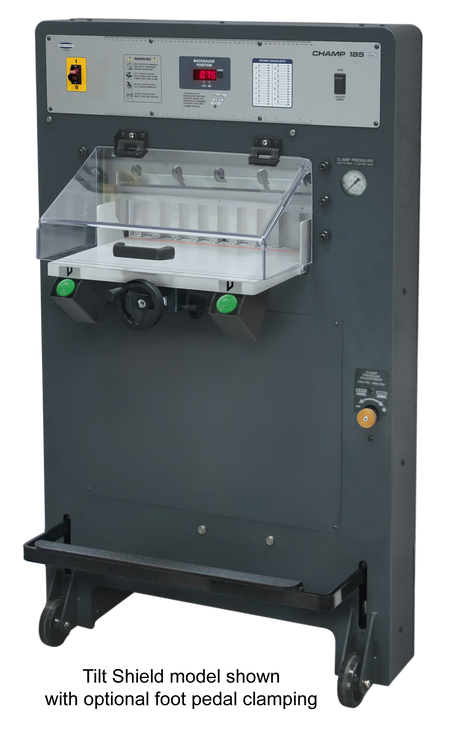

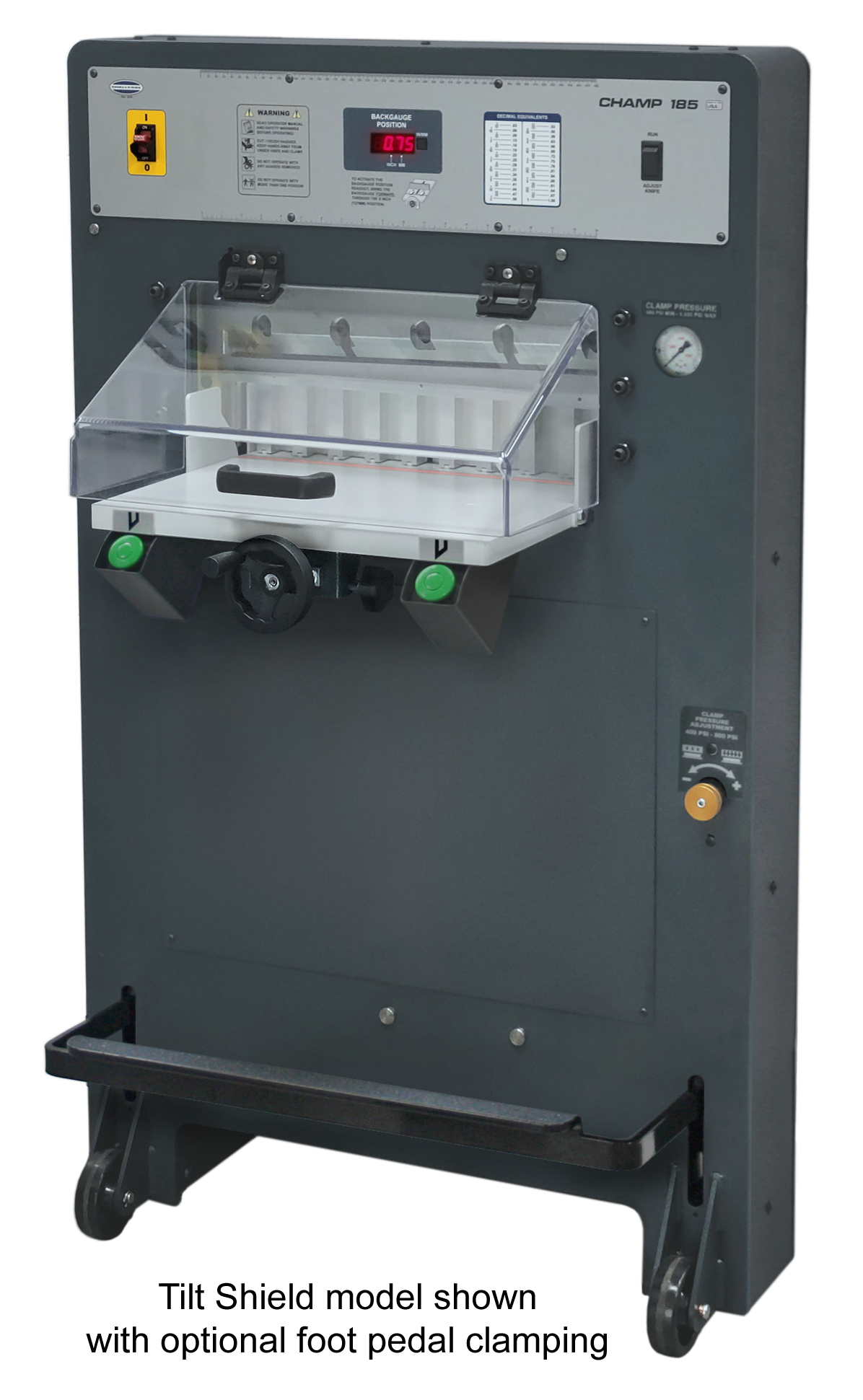

Manual Tilt Shield $13,525.00       CMC-185CHA-MT

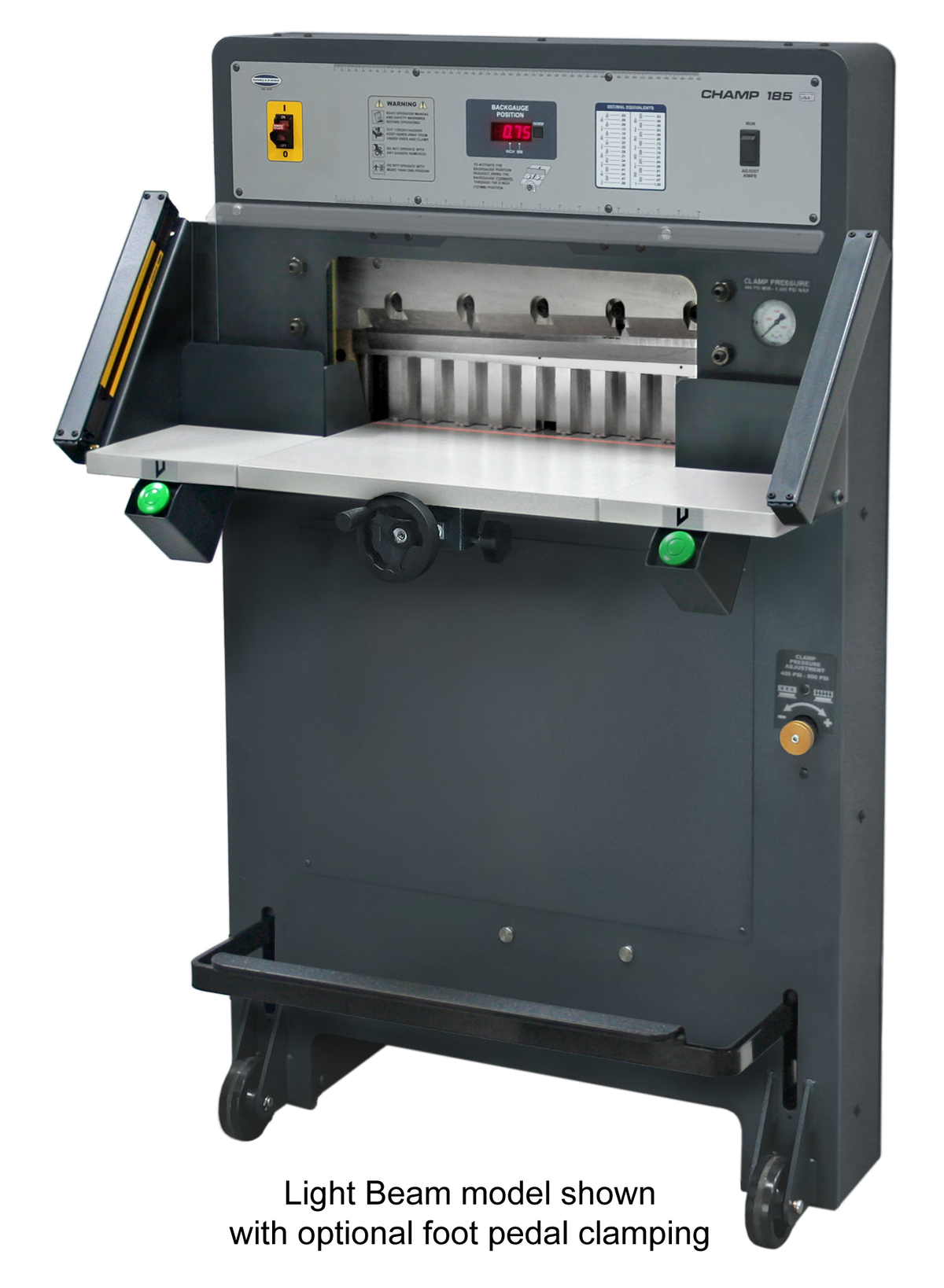

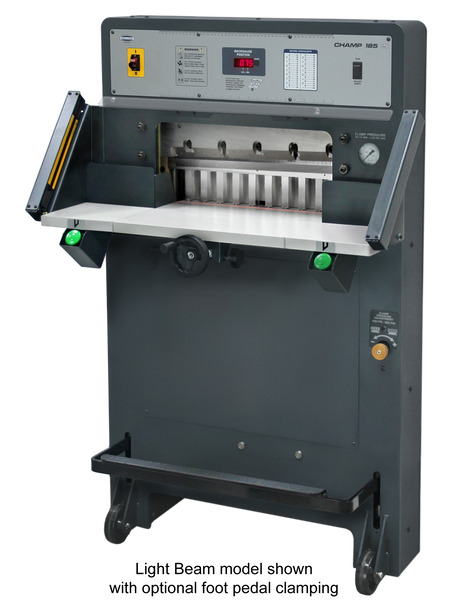

Manual Light Beam $14,700.00       CMC-185CHA-ME

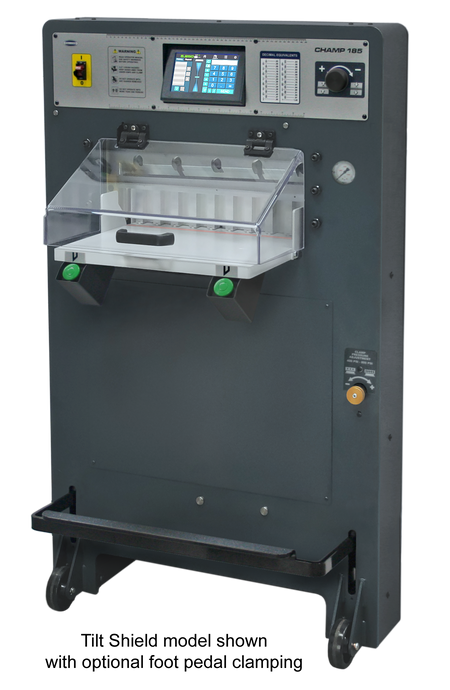

Pro Tilt Shield $16,475.00       CMC-185CHA-PT

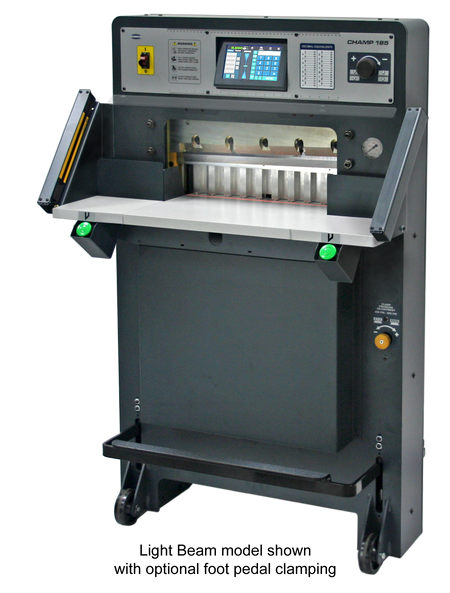

Pro Light Beam $18,995.00       CMC-185CHA-PE

(email us for a price quote)

Key Benefits/Features:
✓ Hydraulic power cutting and clamping
✓ Narrow footprint allows machine to roll through a 36” doorway
✓ Built-in “lock out” power switch
✓ Strong 2,350 lbs. of clamp force – holds stock in place during the cut cycle
✓ Adjustable clamp pressure
✓ Cuts full stacks and thick stocks accurately
✓ Heavy-duty welded frame

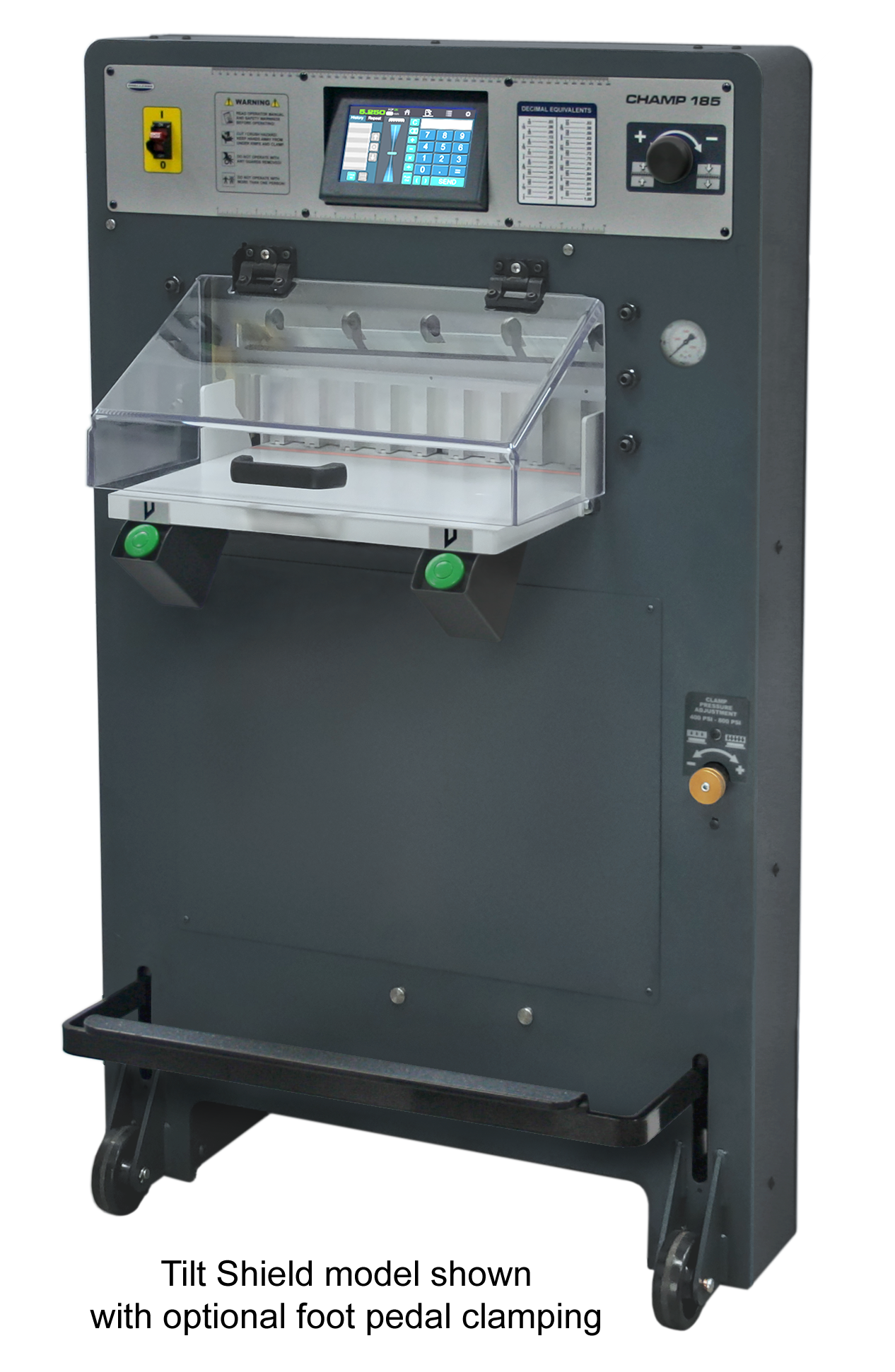

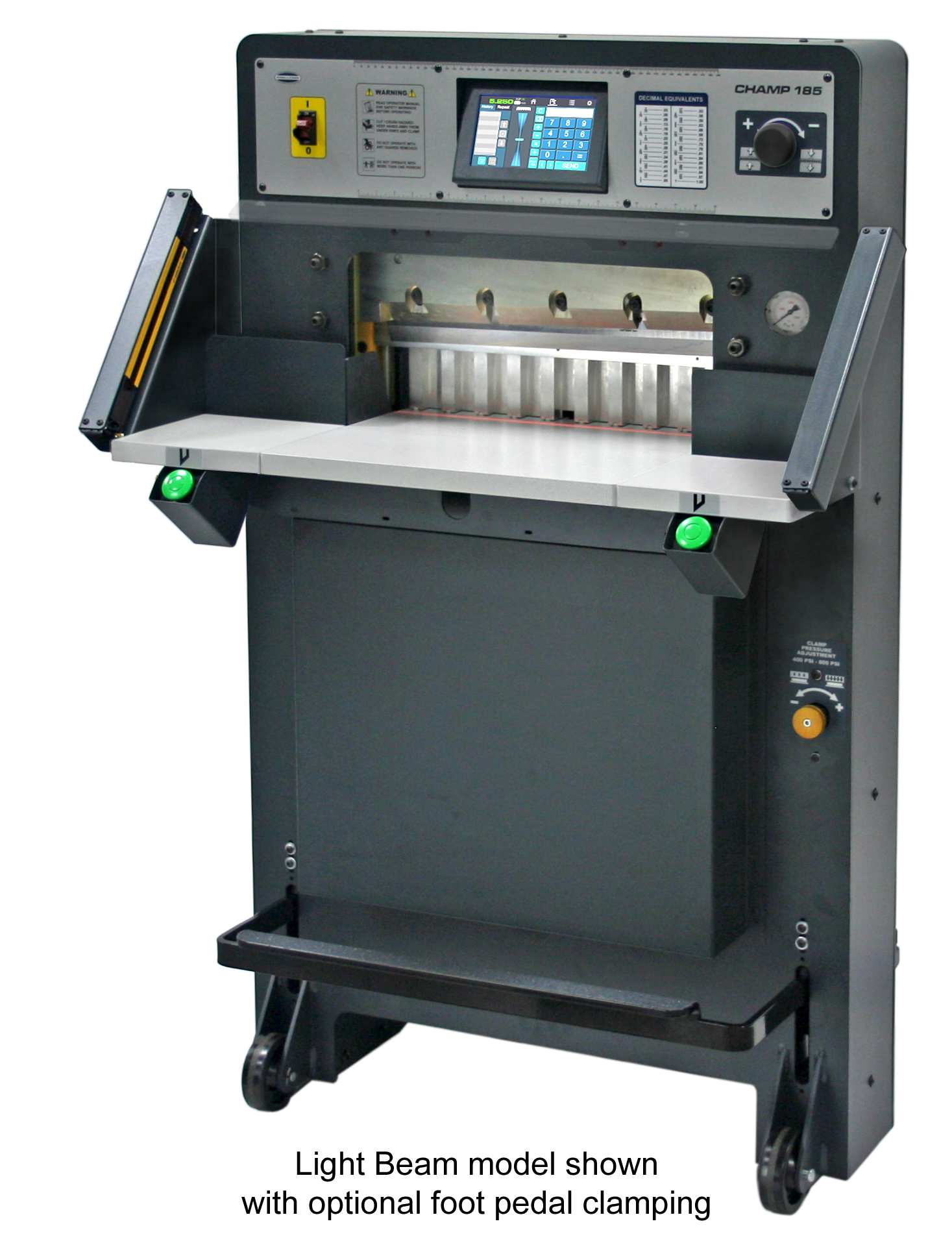

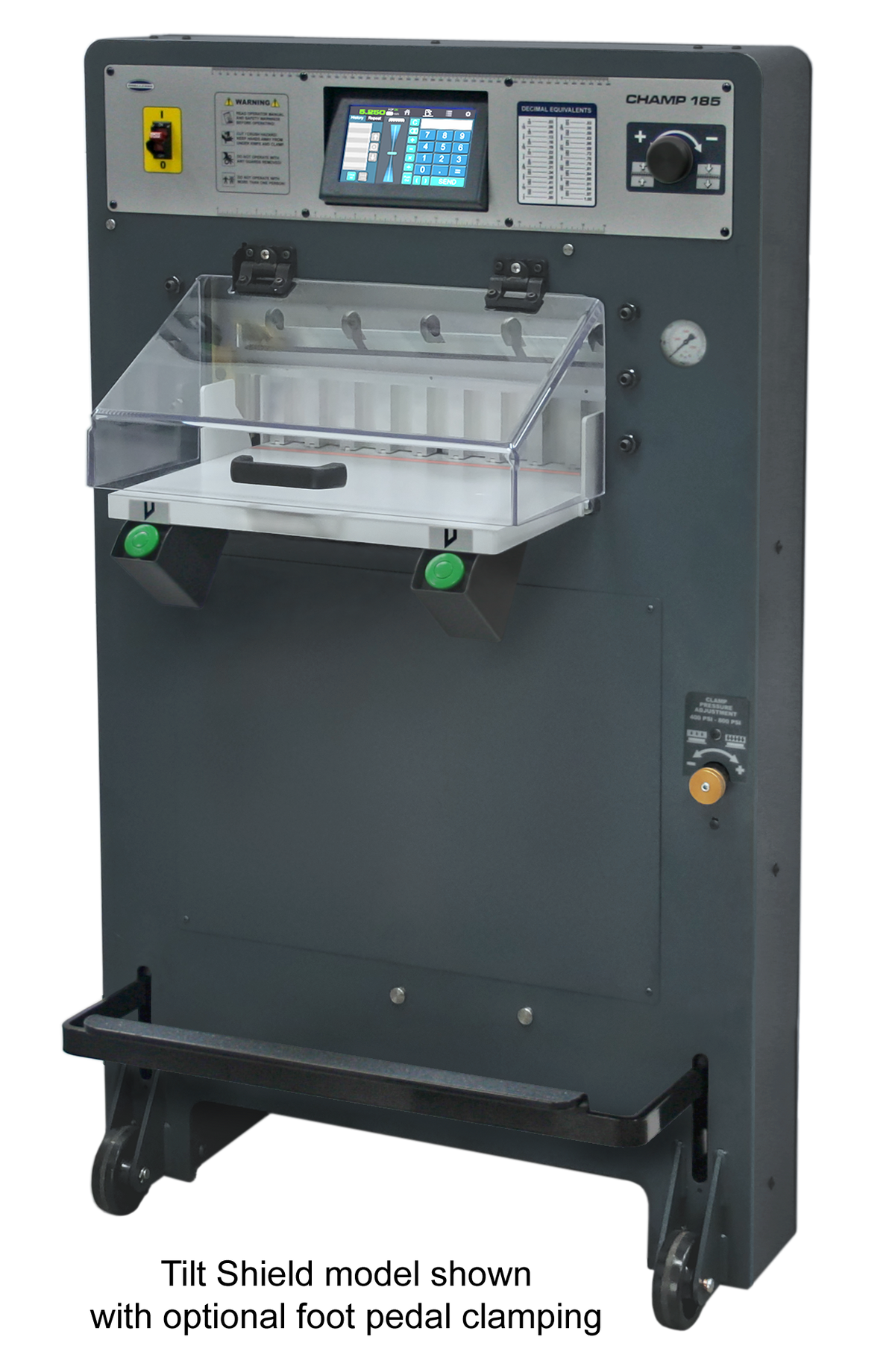

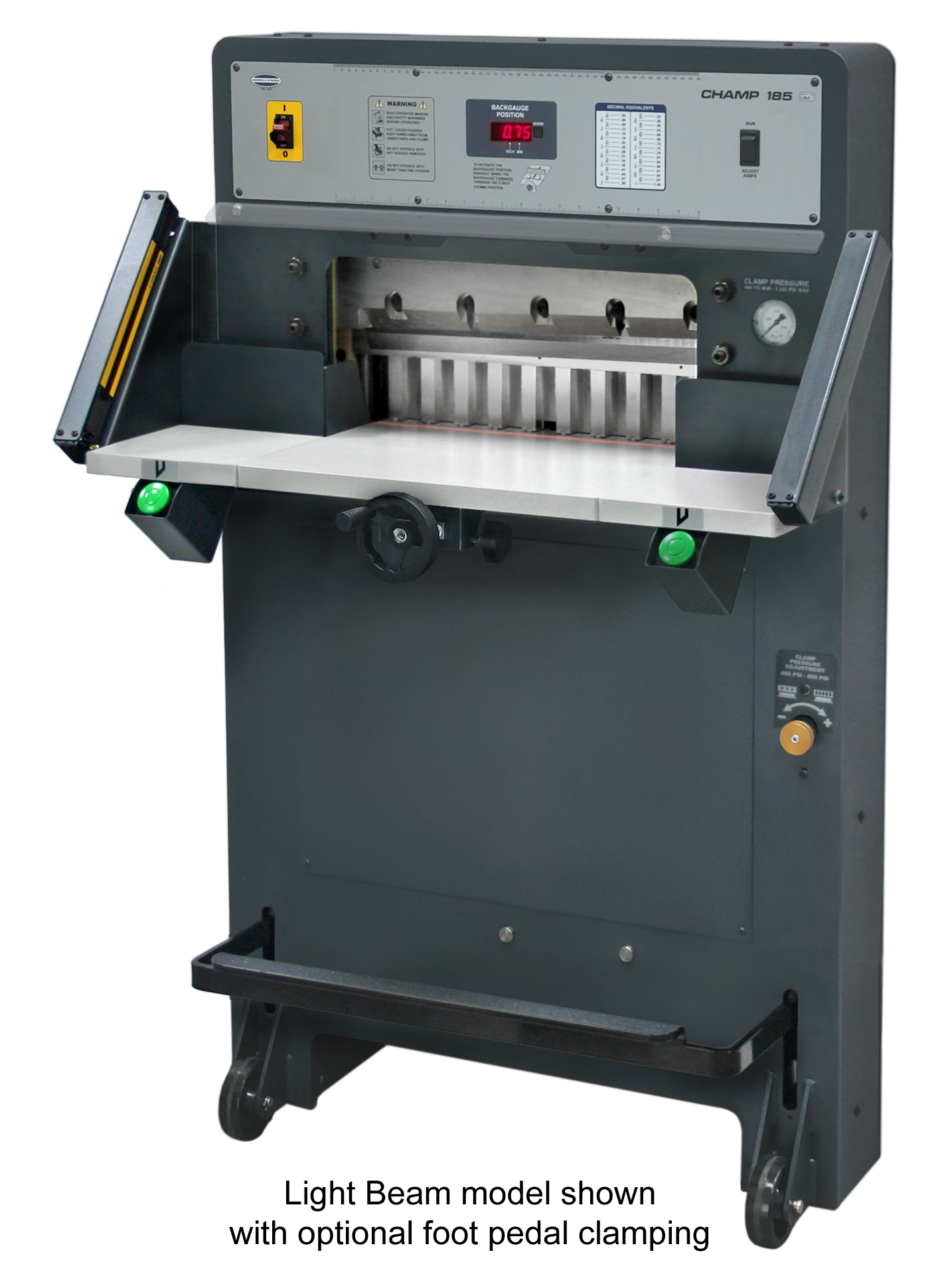

✓ Front safety tilt shield or optional light beams
✓ Power cable fits standard 120V outlet
✓ Micro adjustment backgauge knob
✓ Maintenance free red LED cut line light
✓ Pivoting rear lockable caster
✓ 1-year warranty
✓ CE and UL/cUL certification pending/cUL certification pending

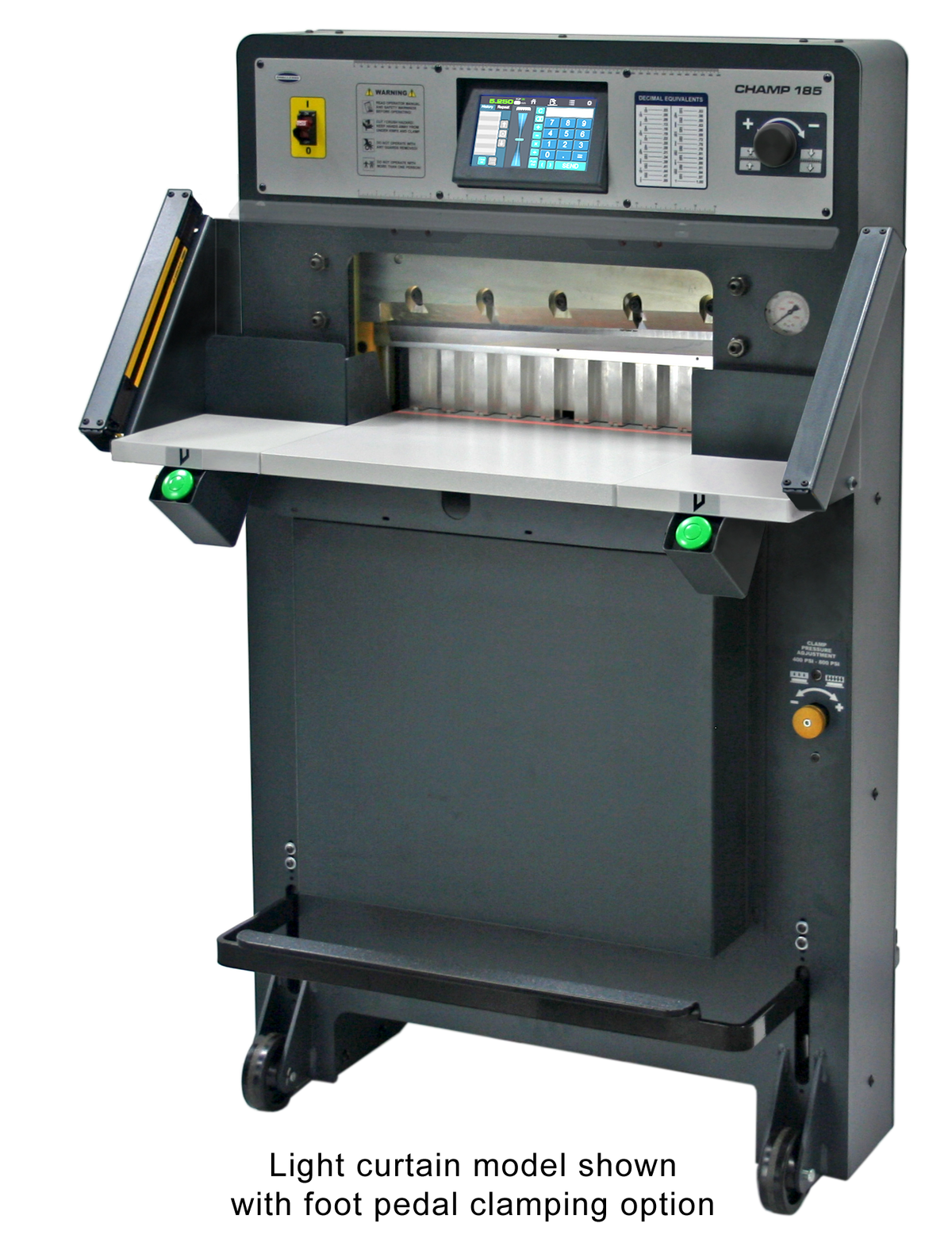

Programmable “Pro” Model:

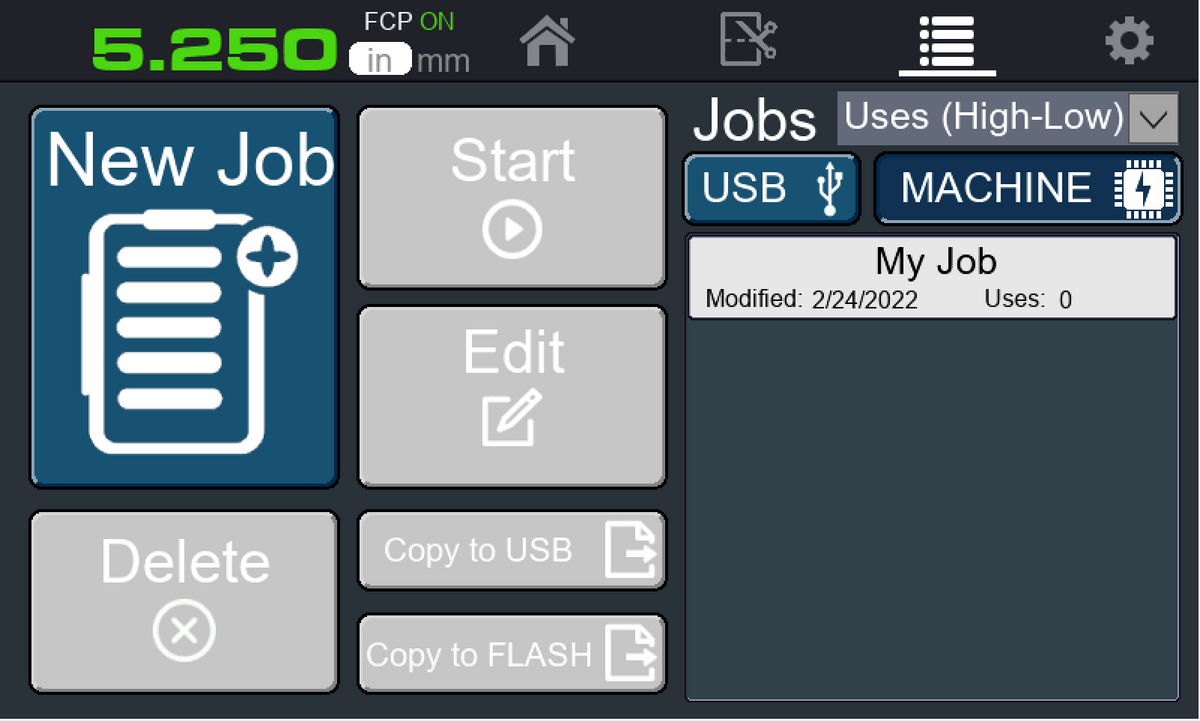

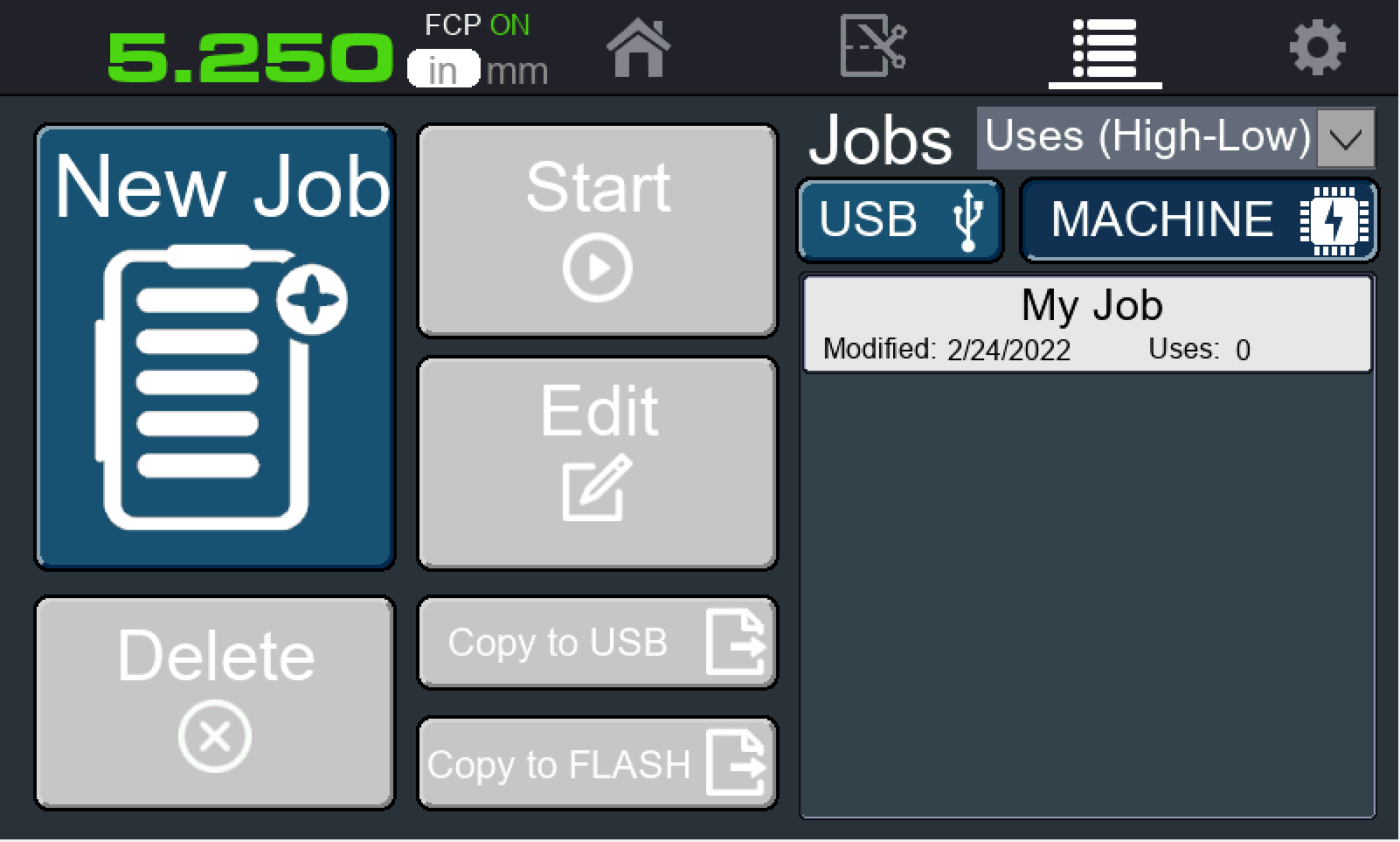

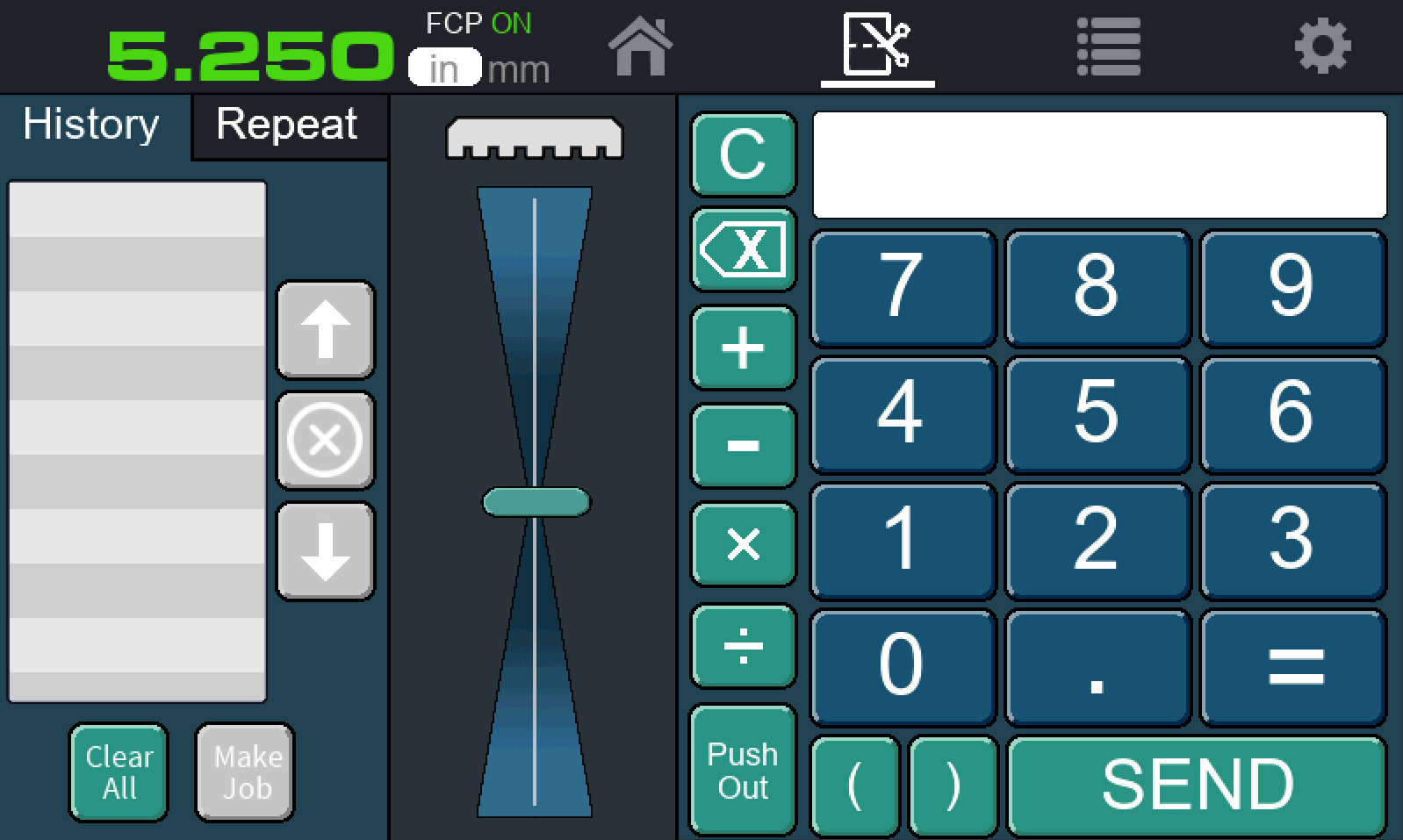

✓ 7.1” color touch screen controller
✓ 99 program capacity/ 99 cuts per program
✓ Automatic false clamp plate detection
Included: (1) high speed steel knife, (3) plastic cutting sticks, (1) jogging aid, (1) tool
kit, (1) operations manual, & (1) knife change safety holder assembly

SPECIFICATIONS
Cutting Width 18-1/2”/470 mm
Clamp Opening 3.25”/82 mm
Min Cut (w/out false clamp plate) 3/4”/19 mm
Min Cut (with false clamp plate) 1.75”/45 mm
Table In Front of Knife 13.25”/337 mm
Behind Knife 19”/482 mm
Table Height 36”/914 mm
Overall Width (no side tables) 33.5”/851 mm
Overall Length 43.5”/1105 mm
Overall Height 56“/1423 mm
Net Weight (approx.) 755 lbs/342 kg
Shipping Weight w/stand (approx.) 920 lbs/417 kg

OPTIONS
Foot Pedal Clamping #18-0-101 $450.00
Field Installation Kit #K-74080 $781.00
Table Extensions
(Tilt models only) #18-0-700 $830.00
