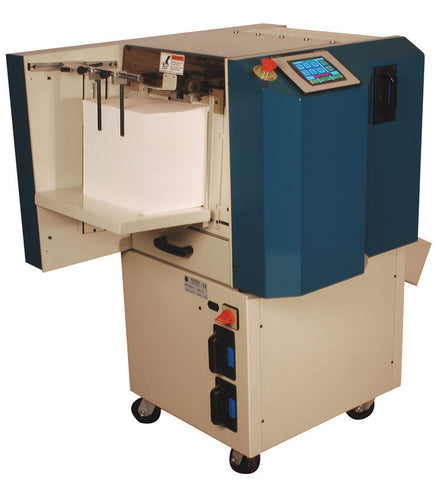

Digipunch 14" (356mm) Auto Paper Punch Machine

In stock
SKU: DigiPunch DP14
Regular price $31,950.00

Sharing is caring! Click the share button to spread this with your friends and help us reach more amazing people like you!

Specifications

Sold locally in Nebraska/Iowa & South Dakota only. Call for pricing.

Product Description
The Sterling Digipunch is an economical high speed automatic paper punching machine designed for short run binderies as well as digital and commercial printers. The machine allows for punching up to 72,000 sheets per hour! That’s a big pile of paper for a small machine and a half million sheets per shift.

The Sterling Digipunch features a variable pile lift, which allows for slowing the machine down for difficult jobs, such as stock that is curled, stock with static, or acetate. Punch sheets with covers or tabs intermixed.

A touch screen offers complete automatic set up and automatic changeovers. The touch screen takes the guesswork out of the maintenance cycle by prompting operators when it is time to lubricate or sharpen the die. Unlike many other machines, it is possible to run the machine in reverse to clear jam ups.

Punch sheets from 4.25 X 5.5 inches to 12 X 14 inches for Plastic Coil, Double Loop Wire, Plastic Comb, Three Hole– or any hole pattern. The optional Drum Bypass is a belt changeover system for heavy board. This will enable the sheet to be delivered without having to bend by traveling around the drum.

Plastic Coil
Double Loop Wire
Spiral
Plastic Comb
Three Hole Custom Patterns

See below:

Digipunch Dies
114-12-000 14” Die, Digipunch 2:1 7/32” Square (Wire-O)
114-02-000 14” Die, Digipunch 2:1 1/4” Round (Wire-O)
114-13-000 14” Die, Digipunch 3:1 5/32” Square (Wire-O)
114-23-000 14” Die, Digipunch 3:1 5/32” Round (Wire-O)
114-03-000 14” Die, Digipunch 3:1 7/32” Round (Coil)
114-33-000 14" Die, Digipunch 3:1 7/32" x 1/4" "DD" (Coil)
114-24-000 14” Die, Digipunch 4:1 11/64” Round .250 (Coil)
114-04-000 14” Die, Digipunch 4:1 3/16” Round .248 (Coil)
114-14-000 14” Die, Digipunch 4:1 5/32” x 3/16” .2475 "DD" (Coil)
114-54-000 14” Die, Digipunch 4:1 3/16” Round .2475 (Coil)
114-40-000 14” Die, Digipunch 2.5:1 1/4” Round .400 (Coil)
114-09-000 14” Die, Digipunch GBC Comb 1/8” x 5/16” Adjustable Margin
114-30-000 14” Die, Digipunch 3 hole 5/16” Round
114-70-000 14” Die, Digipunch 7 hole 5/16” Round
114-01-000 14” Die, Digipunch Velobind 1/8” Round
